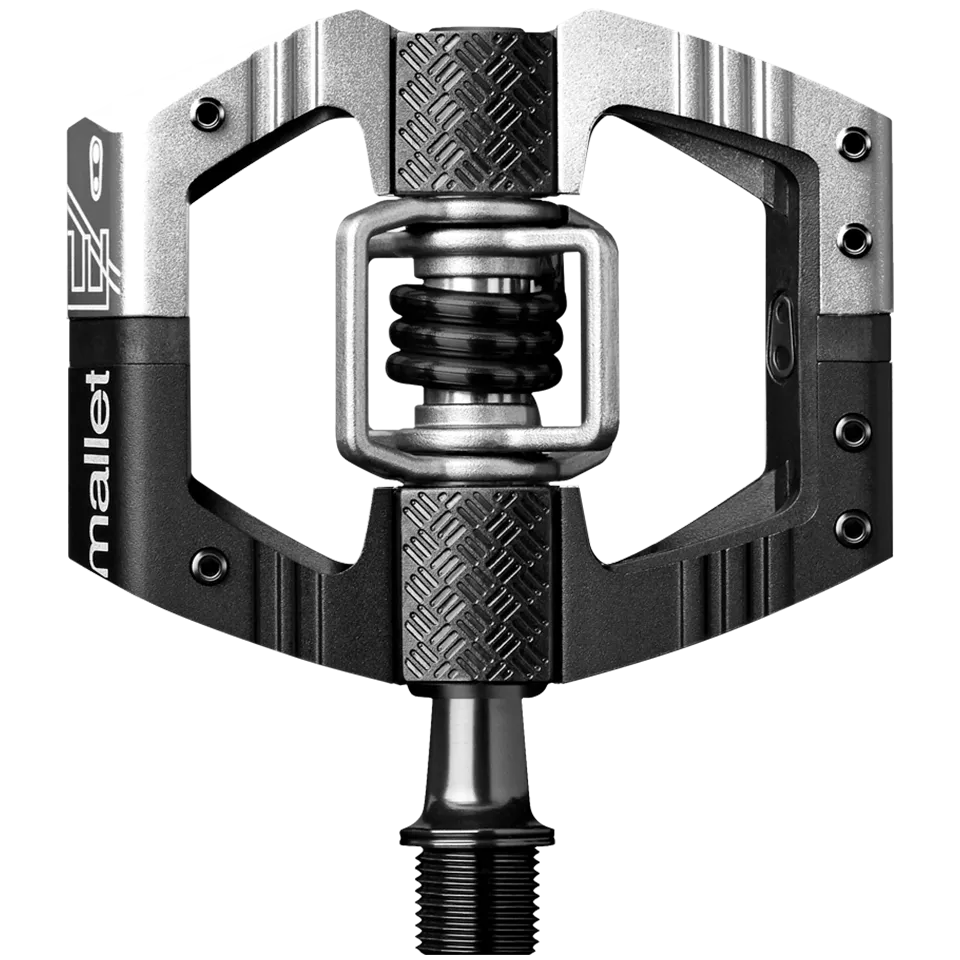

Concave platform for secure foothold
6 adjustable pins per side for grip
Integrated traction pad technology to optimize the shoe/pedal interface
Ribbed body for better traction when unclipped
Chamfered edges to reduce rock-strikes
57mm q-factor for increased shoe clearance and control
4-sided entry / superior mud shedding
Customizable float & release angle
Premium bearing & double seal system

BODY MATERIAL
6061-T6 Aluminum

BODY DIMS (L X W)
94mm x 75mm

WING MATERIAL
17-4PH Stainless

SPINDLE LENGTH
57mm

ADJUSTABLE PINS
6 per side

INNER BEARING TYPE
Igus LL-glide bearing

OUTER BEARING TYPE
Enduro MAX cartridge bearing

ENDCAP
Hex alloy

SPINDLE MATERIAL
Forged SCM 435 Chromoly Steel

SPRING MATERIAL
300 series stainless steel

MAX RIDER WEIGHT
No restriction

WEIGHT
424g per pair

INCLUDED CLEAT TYPE
15° / 20° Standard Release, 6° Float

CLEAT NOTICE
Third-party cleats are not approved for use with Crankbrothers pedal systems. Using non-Crankbrothers cleats can reduce pedal lifespan and voids the pedal warranty.

WARRANTY
5 years
