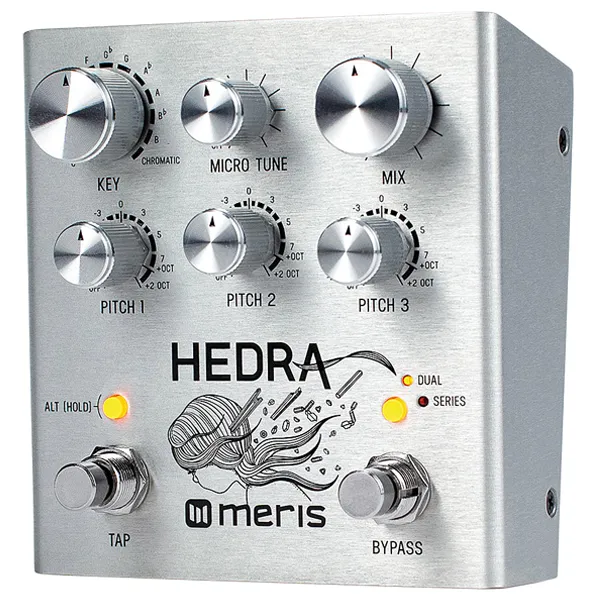

Rhythm Prism. Hedra is a 3-Voice Rhythmic Pitch Shifter. 3 voices, in rhythm combine with your original voice to create harmonies. Each voice can be delayed and fed back in 4 intricate matrices for either predictable or unpredictable results. Selectable pitch correction, micro tuning, chromatic or key driven harmony, keyboard control, glide, smooth or hard stepping and swell top off the feature list. Hook up an expression pedal directly to the back of the pedal for expressive control or automate with MIDI.

3-Voice Rhythmic Pitch Shifter

• Selectable Pitch Correction Types to ReVoice your Melodies in RealTime
• Individual Controls for Pitch and Time Offset for each Voice (3 Voices Total)
• Micro Tune control creates gentle chorus-like detuning, classic studio fattening, and extreme warping
• Chromatic or Key Driven Harmony with Selectable Scale Types
• 4 Delay Configurations with unique Feedback Routing (520 mS max delay time)
• Unique Keyboard Control putting a Live Quartet Under your Fingertips
• Our Original Glide Mode slides between pitches at the speed you choose
• Choice to sweep through Intervals smoothly or hard step for dramatic pitch effects
• Switchable Half Speed and Auto Swell for advanced textures
• Digitally controlled Analog mix control
• Stereo input and output
• Switchable input / output headroom level for Guitar or Synth / Line level
• Expression pedal control over all parameters simultaneously
• Presets available via external 4-Preset switch or MIDI

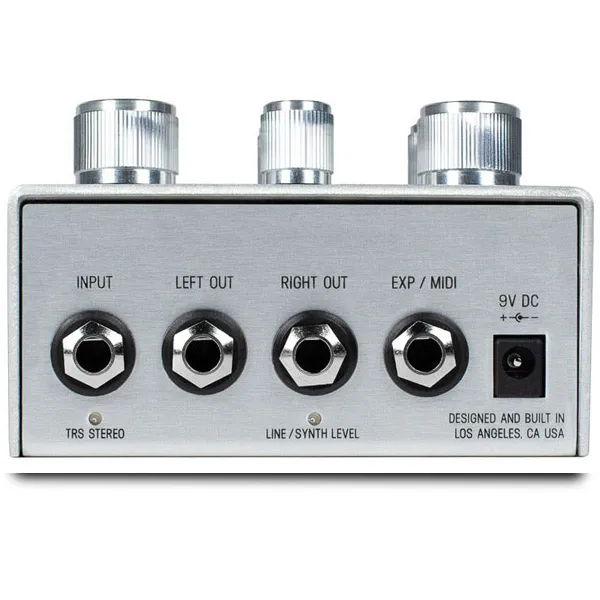

• MIDI in/out over TRS via the EXP jack
• External Tap Tempo over TRS
• MIDI beat clock synchronization
• Premium analog signal path and 24-bit AD/DA w/32 bit floating point DSP
• Premium Analog Devices JFET input section
• Color – raw brushed aluminum with clear coat
• Designed and built in Los Angeles, California U.S.A.

SPECS

• Premium quality 24 bit A/D and D/A
• 32 Bit floating point DSP hardware
• Premium low noise Analog signal path throughout
• Digitally controlled Analog Dry path for wet/dry mix
• Analog Devices JFET input circuitry
• Selectable True Bypass (Relay) or Analog Buffered Bypass
• Durable transparent coated brushed aluminum
• Current draw < 150 mA
• Dimensions – 4.25″ wide, 4.5″ long, 2″ tall
• Sold Separately. Requires Standard 9V center negative pedal power supply 500mA to properly power any one of your Meris pedals. Sold Separately.
